MCT520 5-in-1 MIG/TIG/Stick/CUT Welder | HF Start | Spool Gun Compatible | 110/220V Combo Machine
MCT520 5-in-1 MIG/TIG/Stick/CUT Welder | HF Start | Spool Gun Compatible | 110/220V Combo Machine
5-in-1 Versatility
A true all-rounder for home projects, garage repairs, and industrial tasks. Switch easily between MIG, FLUX, TIG, STICK, and CUT modes — no need for multiple machines.
Smart MIG Operation
Synergic MIG: Automatically adjusts voltage to match wire feed speed
Manual MIG: Fine-tune voltage and wire speed independently
Supports multiple gas types: FLUX (gasless), 100% Ar, CO₂, mixed gases
Wire diameters: 0.8mm / 0.9mm / 1.2mm
Aluminum-Ready with Spool Gun Support
One-button activation of Spool Gun mode
Automatically switches to Manual MIG
Optional Spool Gun enables smooth aluminum welding
Advanced HF DC TIG Welding
Non-touch high-frequency arc start for clean and easy ignition
Supports up to 200A output for a wide range of metal thicknesses
Powerful Plasma Cutting
Output range: 20–50A
Clean Cut: 5/16" (8mm) @110V, 1/2" (12mm) @220V
Max Cut: 1/2" (12mm) @110V, 5/8" (16mm) @220V
Works with PT31 torch using non-hazardous compressed air
Adjustable pre-gas and post-gas settings
Enhanced Stick Welding Features
Hot Start: Easier arc ignition
Arc Force: Better arc stability
Anti-Stick: Prevents electrode sticking
VRD (Voltage Reduction Device): Increased safety during standby

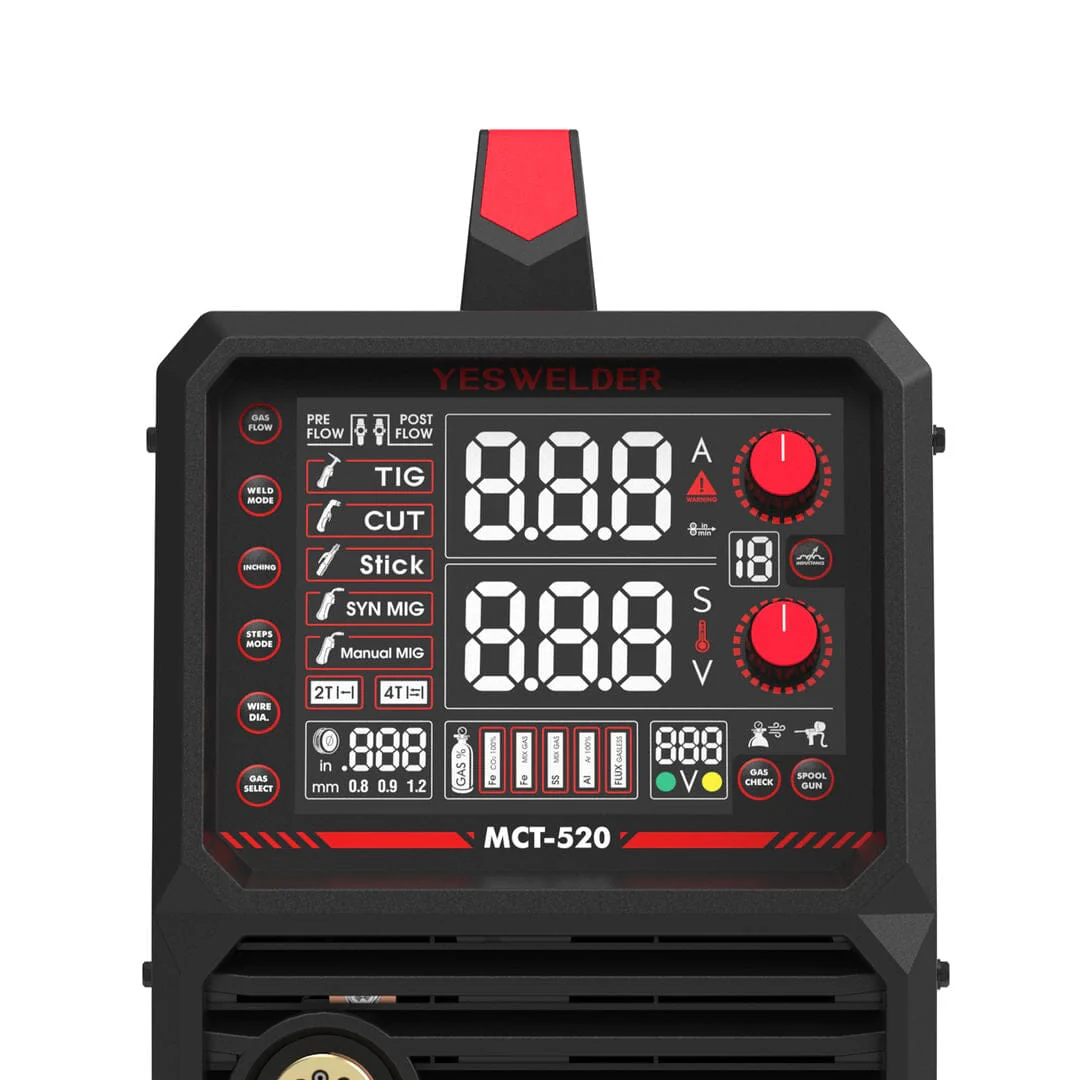

Crystal-Clear Digital Display
High-resolution digital screen for easy parameter viewing and adjustments
Supports real-time gas check to confirm gas flow before welding
Triple Safety Protection
Built-in protections for over-voltage, over-current, and overheating, ensuring safer operation and longer machine lifespan.

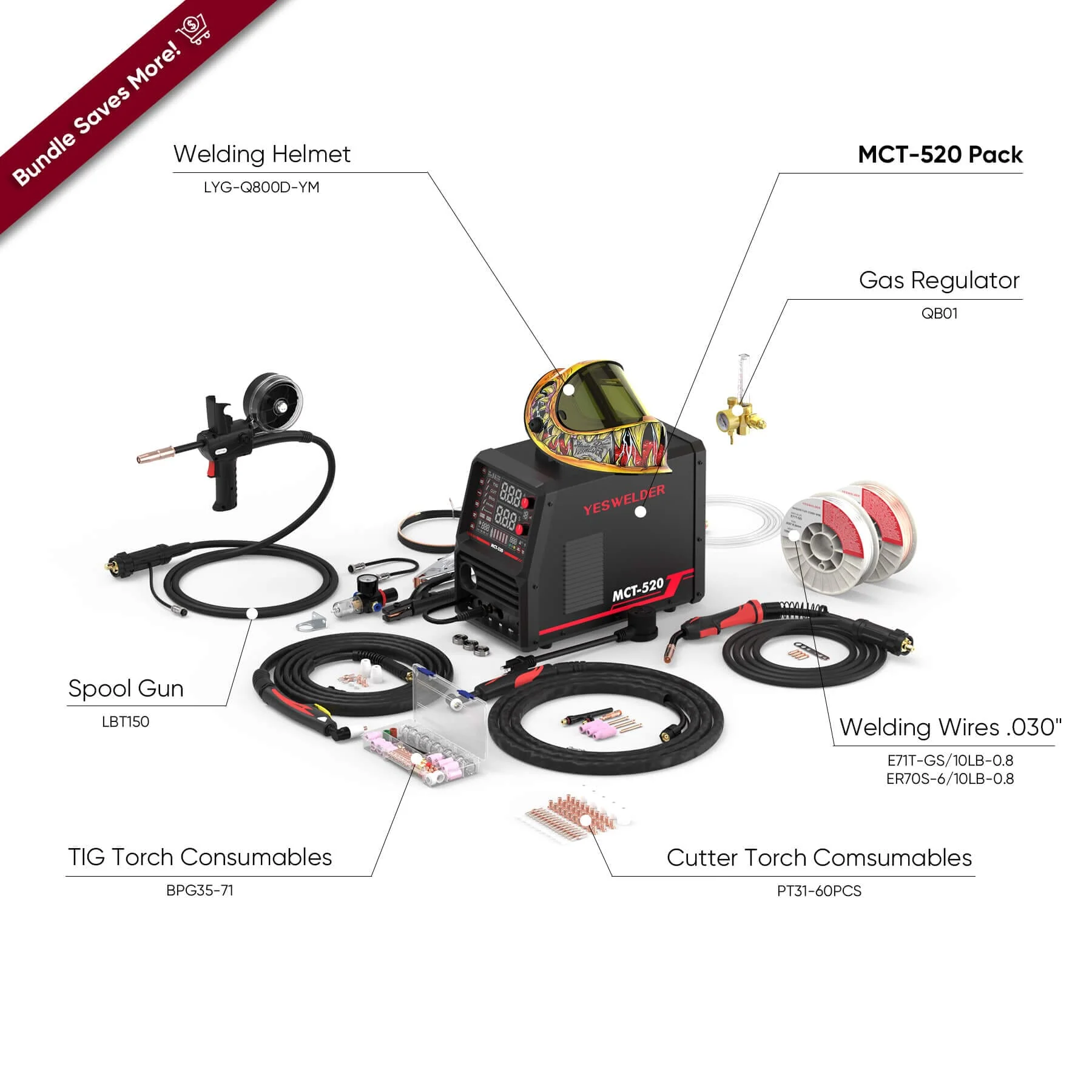

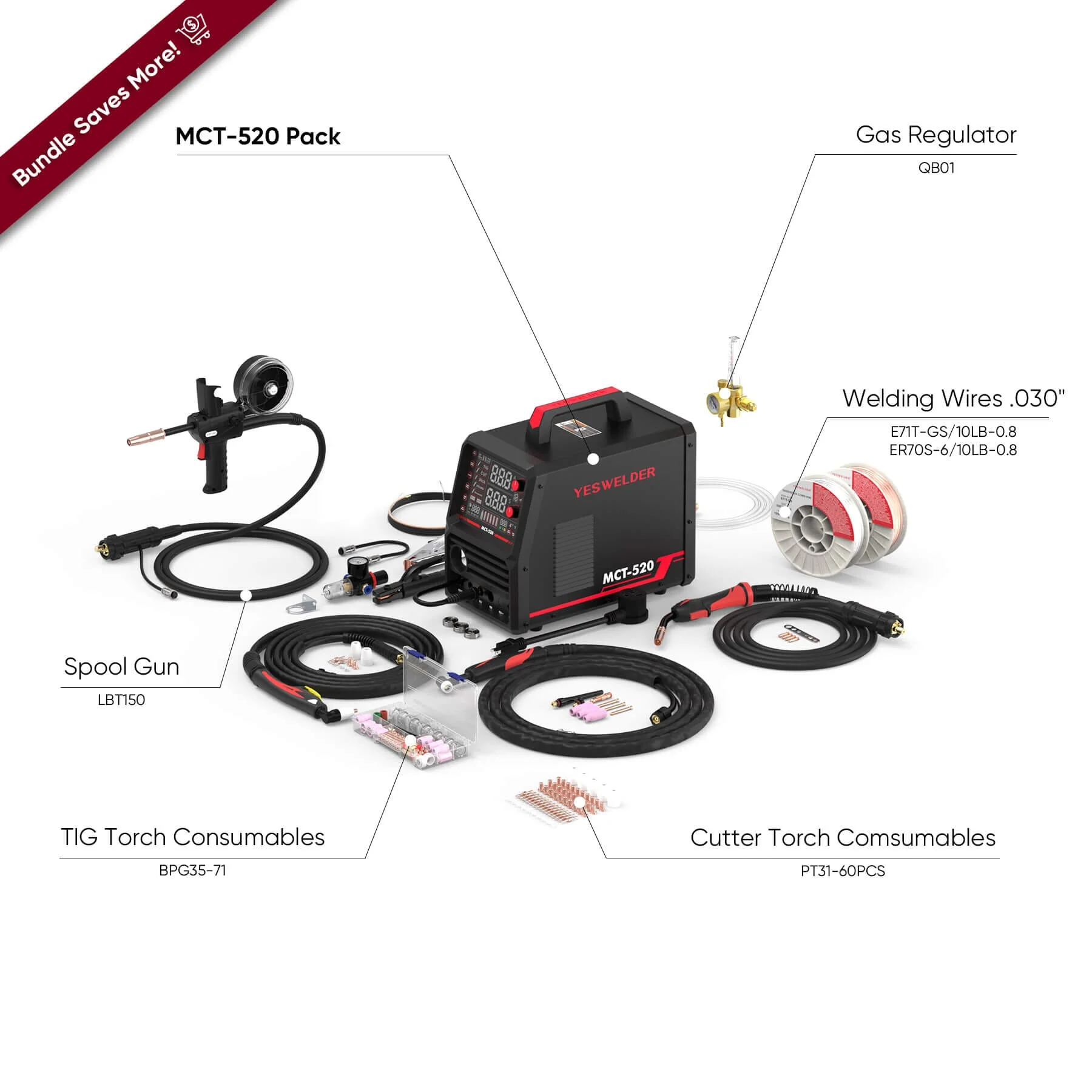

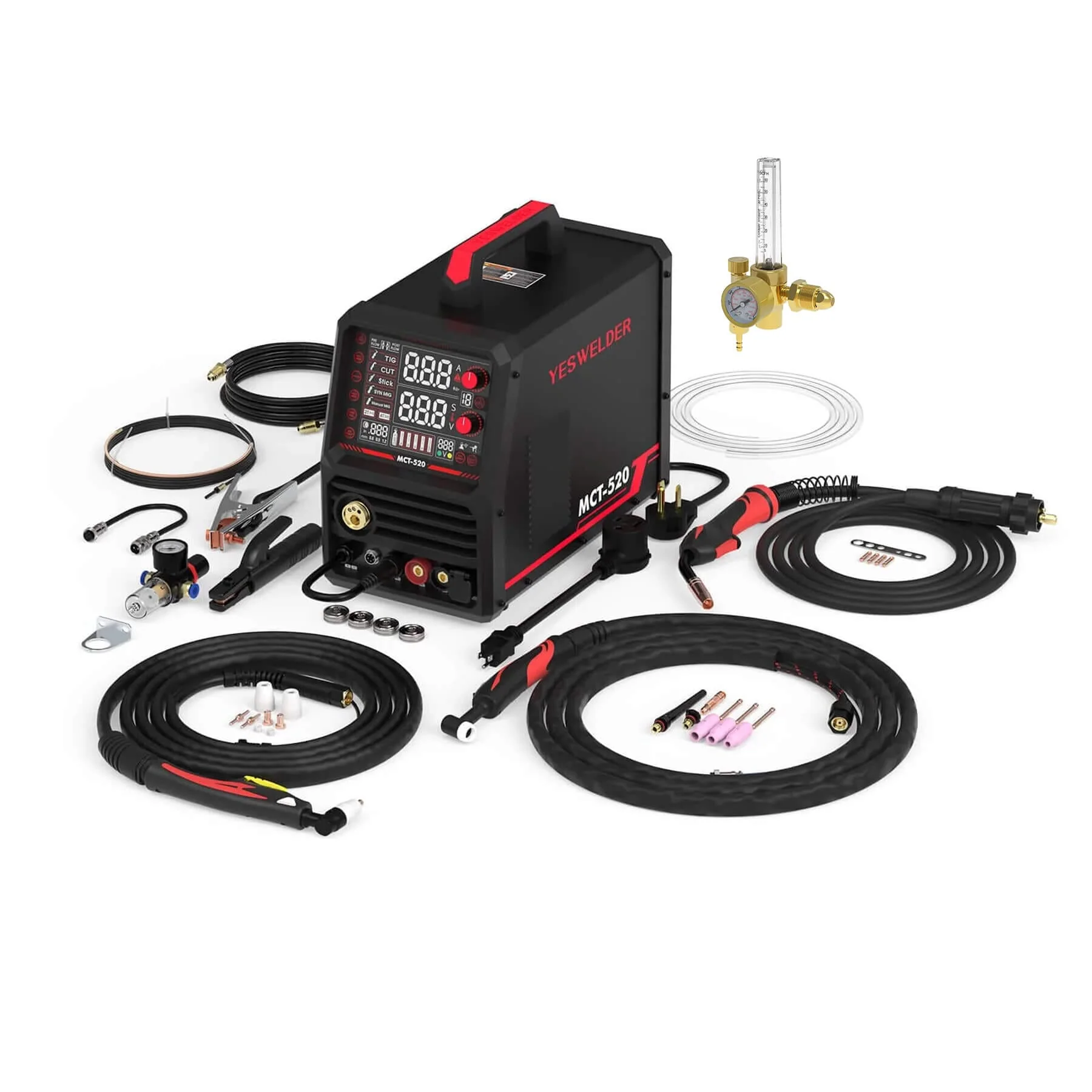

Package List
- MIG Torch with European Torch connector and an extra graphite liner
- Plasma Torch (PT31) with M16×1.5 Torch connector with 5-pin plug
- TIG Torch (WP-17) with M16×1.5 Torch connector with 5-pin plug
- Electrode Holder
- Ground Clamp
- Gas Hose For Welding
Gas Hose For Plasma Cutting - Voltage Adapter – 220V to 110V
- Signal Adapter – 2-pin to 5-pin(for spool gun).
- Drive Rolls – W-type .030"/.035"mm ×1, U-type.035"/.045"mm ×1.
Original: $699.00
-65%$699.00
$244.65More Images
